Self Loading Concrete Mixer Truck CMT3000

  • Dimensions(mm):7800×2720×3000
  • Engine Model:YUCHAI 4102 Turbocharged Engine 78KW
  • Concrete output:9m³/H

We’re here to help:Easy ways to get the answers you need

Self Loading Concrete Mixer Truck CMT3000

Products Description

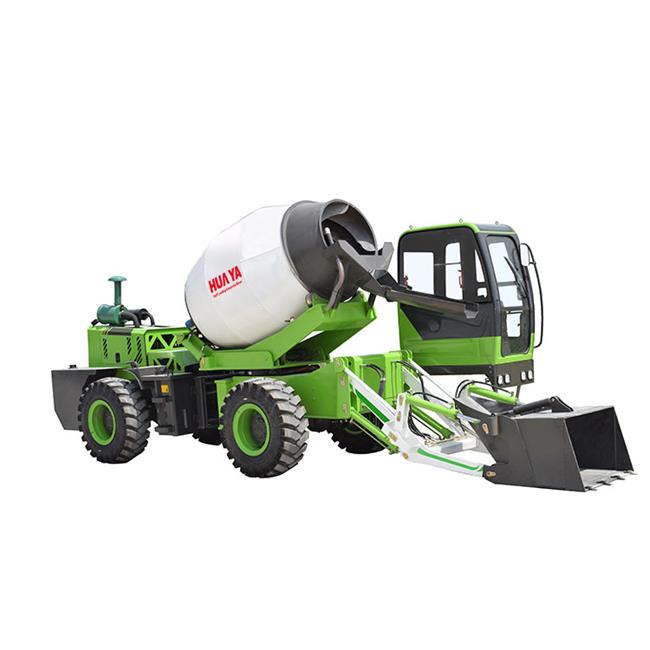

The HUAYA CMT3000 Self Loading Concrete Mixer Truck is a cutting-edge solution for on-site concrete mixing and transportation. Featuring an integrated self-loading system, this mixer truck combines all essential functions—loading, mixing, transporting, and discharging concrete—into one highly efficient unit. The CMT3000 is designed for maximum productivity and performance in demanding construction environments.

Features

Self-Loading Mechanism: The self-loading bucket allows for fast and precise material loading, eliminating the need for additional machinery and reducing manual labor.

270° Rotating Drum: Ensures thorough concrete mixing and precise discharge, delivering uniform quality concrete with every batch.

4-Wheel Drive (4WD): The powerful 4WD system enables the CMT3000 to navigate tough terrain and job sites with ease, providing reliable operation in all conditions.

High Capacity Drum: Designed for large-volume concrete mixing, this mixer truck delivers continuous, high-quality concrete supply for medium to large construction projects.

User-Friendly Controls: Equipped with an intuitive control panel, operators can easily manage the entire process from loading to mixing and discharging, boosting operational efficiency.

Durable Construction: Engineered with robust materials, the CMT3000 withstands the rigors of construction sites, ensuring long-term performance and reliability.

Applications

Construction Sites: Ideal for on-site concrete production in residential, commercial, and industrial construction projects.

Road and Infrastructure Projects: Suitable for road construction, bridges, and other infrastructure projects requiring consistent and high-quality concrete output.

Urban and Rural Construction: Adaptable to both urban settings and remote areas, the CMT3000 excels in diverse project environments.

Foundation and Building Work: Perfect for mixing and delivering concrete for building foundations, walls, slabs, and other critical structural components.

Advantages

Increased Efficiency: The self-loading design minimizes time and labor, allowing for faster and more efficient concrete production.

Versatility: The 4-wheel drive and compact design make it suitable for navigating rough terrains and working in tight spaces.

High-Quality Mixing: The 270° drum rotation ensures consistent and even mixing, producing high-quality concrete every time.

Cost-Effective: By combining multiple functions into one machine, the CMT3000 reduces the need for additional equipment, saving costs on machinery and manpower.

Item Unit Parameter

Item Unit Parameter
Dimensions(L*W*H) mm 7800×2720×3000
Wheelbase mm 2800
Vehicle weight kg 6500
Maximum speed km/h 30
Maximum climbing angle ° 30
Minimum turning radius mm 5300
Minimum ground clearance mm 380
Fuel tank L 75
Total hydraulic system capacity L 75
Oil L 16
Tank volume L 500
Roller geometry capacity L 3580
Drum rotation speed rpm 13
Concrete yield  m³/ can 2.6

Standard configuration

Big wheel bridge, full hydraulic gearbox, automatic water metering, driving image, 270° rotation of the tank.

Accessory

We have prepared enough various accessories for you to choose from for different purposes.
